| Attributes | Value |
|---|---|
| Diameter (m) |
2,3 |
| Volume (m³) |
37,8 |
| Height (m) |
12,52 |
| Slope of the cone (°) |
70 |
| Roof slope (°) |
45 |
| Weight (kg) |
1285 |
| Ton vid 650kg/m3 |
24,5 |
Article number: UN38. ø – 2.35m

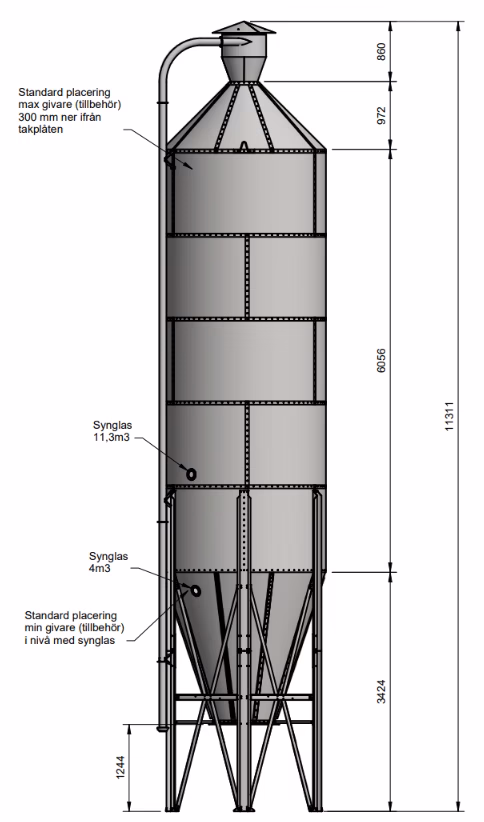

MAFA UN 38 is a Swedish-made silo. It has a sturdy construction and is made of high-quality steel sheet coated with aluminum and zinc. A quality sheet with longer durability compared to, for example, galvanized sheet.
NOTE, the silo is delivered as standard with a filling pipe, cyclone with filling via long-radius bend, and a sight glass.
If one purchases an additional trunk cyclone, the silo height increases by 363 mm.
Article number: UN12. ø – 2.35m MAFA UN 12 is a Swedish-made silo. It has…
Read more about the product
Article number: UN17. ø – 2.35m MAFA UN 17 is a Swedish-made silo. It has…
Read more about the product
Article number: UN27. ø – 2.35m MAFA UN 27 is a Swedish-made silo. It has…
Read more about the product
Article number: UN33. ø – 2.35m MAFA UN 33 is a Swedish-made silo. It has…
Read more about the product
MAFA’s factory-assembled UNIK silo is backed by a 10-year corrosion warranty – clear proof of its quality and durability. We reserve the right to modify our product range and design without prior notice. A reliable, long-term investment for your business.
