MAFA Unik – UN Bioenergy

Swedish-made silo for reliable fuel handling

MAFA Unik is a Swedish-made silo designed for safe and efficient handling of biofuel, pellets, and other biomass. Its robust construction and high durability make it ideal for both industrial facilities and private use within the bioenergy sector. The silo is manufactured from durable steel plate with an aluminum-zinc coating – a material that provides significantly longer service life than traditional galvanization and offers effective corrosion resistance.

MAFA Unik – UN Bioenergy

  • 45° roof for maximum filling capacity

  • 10 year warranty against corrosion

  • The surface reflects heat and preserves the contains quality

Contact me and I’ll help you.

Anders Henriksson Sales Bioenergy/Industry Tel: +46 (0)431 44 52 62 anders@mafa.se

Technical Data

Model Volume (m³) Diameter (m) Height (m) Slope of the cone (°) Ton vid 650kg/m3 Roof slope (°)
Mafa UNIK 12 2,3
Mafa UNIK 17 17,1 2,3 7,72 70 11,1 45
Mafa UNIK 22 22,3 2,3 8,92 70 11,1 45
Mafa UNIK 27 27,5 2,3 10,2 70 17,9 45
Mafa UNIK 33 32,6 2,3 11,3 70 21,2 45
Mafa UNIK 38 37,8 2,3 12,52 70 24,5 45

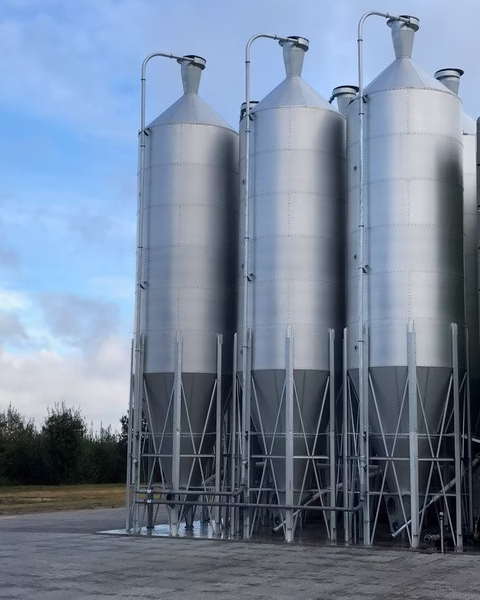

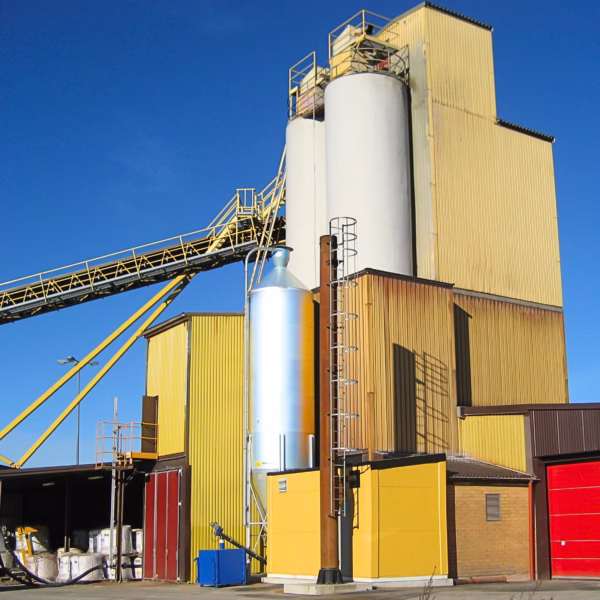

Image Gallery

MAFA UNIK:

Built to last, designed to perform

MAFA Unik is a robust, Swedish-made silo designed to meet the demands of modern bioenergy management. Manufactured from durable steel plate with an aluminum-zinc coating (Aluzinc), it offers up to three times longer service life compared to galvanized steel silos. The silo is factory-assembled and comes with a 10-year anti-corrosion warranty – a clear testament to its quality and durability.

The silo is designed to streamline the handling of pellets, biofuel, and other biomass. It features a smooth interior, special bolts, and a steep 70° cone, which together ensure excellent discharge and minimize friction. The standard model handles materials with a bulk density of up to 750 kg/m³, but can be adapted for even heavier bioenergy fuels.

MAFA Unik offers several features that make a big difference for all types of bioenergy facilities – from residential boilers and small storage units to large industrial plants. We provide systems for all types of biofuel, including pellets and wood powder. For wood powder, ATEX-compliant filling is available for maximum safety and explosion protection.

Thanks to a wide range of auger boxes and the ability to customize the silo size to the desired storage volume, MAFA Unik can be seamlessly integrated into all types of bioenergy systems – from small residential boilers and farm storage to large industrial facilities. This makes the silo a versatile and future-proof choice for efficient, reliable, and quality-assured handling of pellets and wood powder.

VÅR KVALITET

10-year warranty on the UNIK silo

MAFA’s factory-assembled UNIK silo is backed by a 10-year corrosion warranty – clear proof of its quality and durability. We reserve the right to modify our product range and design without prior notice. A reliable, long-term investment for your business.
