| Attributes | Value |
|---|---|
| Diameter (m) |
1,9 |
| Height (m) |
8,21 |
| Roof slope (°) |
45 |
| Weight (kg) |
590 |
| Volume (m³) |
14,1 |
| Ton vid 650kg/m3 |
9,1 |
| Slope of the cone (°) |
70 |
Article number: UNS14. ø – 1.89m
MAFA UNS 9 is a Swedish-made silo. It has a sturdy construction and is made of high-quality steel sheet coated with aluminum and zinc. A quality sheet with longer durability compared to, for example, galvanized sheet.NOTE, the silo is delivered as standard with a filling pipe, cyclone with filling via long-radius bend, and a sight glass.If one purchases an additional trunk cyclone, the silo height increases by 363 mm.
Item number: UNS3. 70° cone, 45° roof, ø – 1.89 m MAFA UNS 3 is…
Read more about the product
Article number: UNS6. ø – 1.89m MAFA UNS 6 is a Swedish-made silo. It has…
Read more about the product
Article number: UNS9. ø – 1.89m MAFA UNS 9 is a Swedish-made silo. It has…
Read more about the product

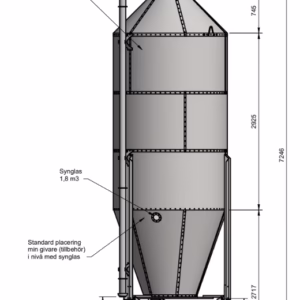

Article number: UNS12. ø – 1.89m MAFA UNS 12 is a Swedish-made silo. It has…
Read more about the product
MAFA’s factory-assembled UNIK silo is backed by a 10-year corrosion warranty – clear proof of its quality and durability. We reserve the right to modify our product range and design without prior notice. A reliable, long-term investment for your business.
