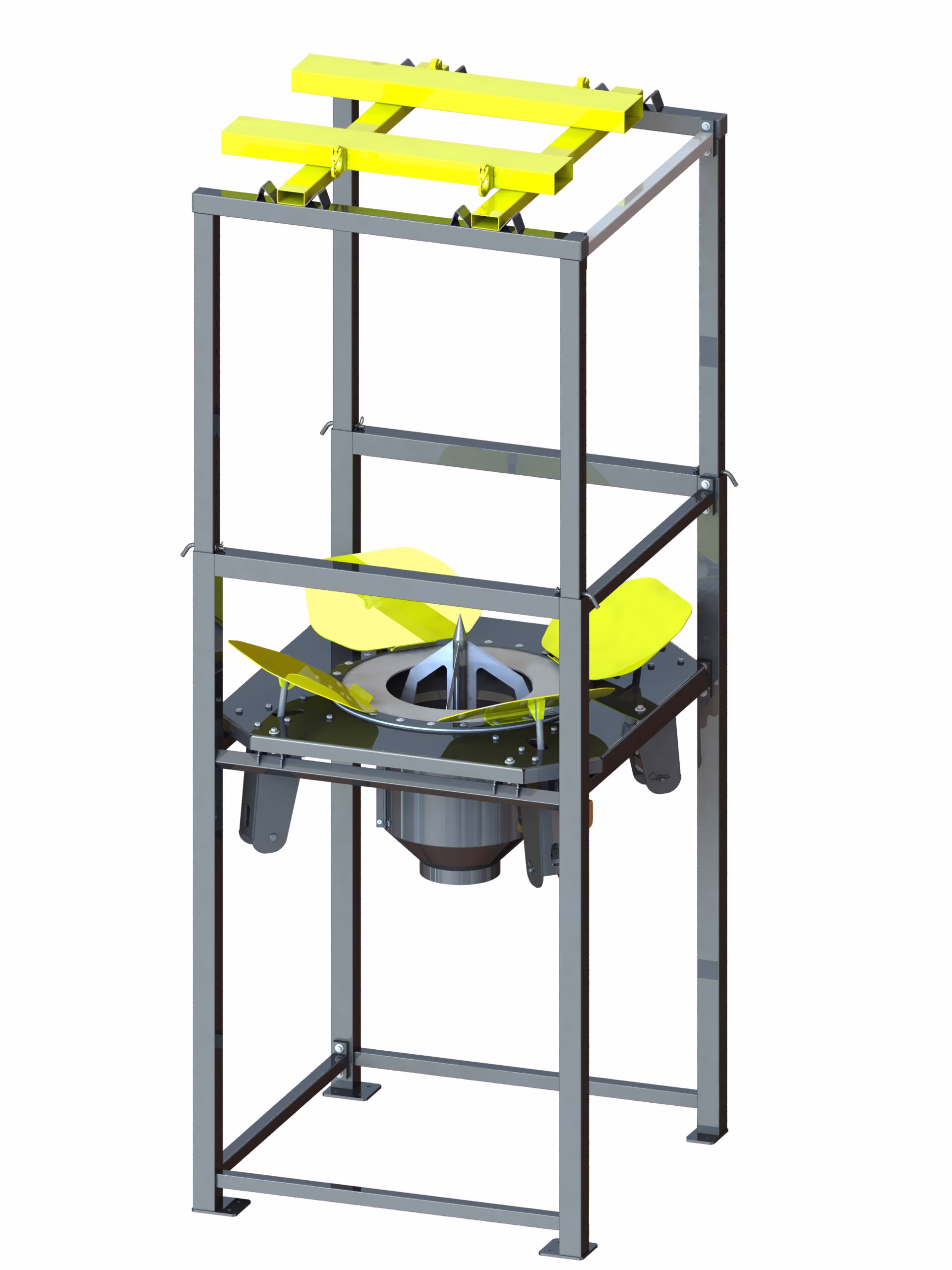

Big Bag Discharger SBB-HFF S

Big Bag Discharger SBB-HFF S

The SBB-HFF S Big Bag Discharger is designed for big bag handling using a stand, with the bag placed on the stand, for example, with a forklift.

The discharger is manufactured in carbon steel painted RAL7001, with a lifting yoke in steel painted RAL1004. The yoke has four hooks for securely attaching and lifting the big bag.

It includes a 0.15 kW motor vibrator, and the cone is equipped with black neoprene (standard) to reduce dust during emptying. The discharger has a flanged cylindrical outlet XKFL with a diameter of 273 mm, and an inspection hatch with optional safety switch KFMSBBHFF. Through the inspection hatch, bags with a funnel (not flat-bottomed) can be opened.

The discharger is also available in ATEX-compliant versions.

The upper part of the big bag stand is telescopic, adjustable in 100 mm increments, and includes built-in springs that slowly raise the stand as the bag empties, ensuring the last material is fully discharged.

Available Variants

• Standard version

• Product-contact parts in stainless steel (AISI 304)

• Entirely in stainless steel (AISI 304)

Other models in the SBB-HFF series:

• SBB-HFF C – without stand, for suspended bags

• SBB-HFF M – for traverse

All variants and models have a maximum load capacity of 2 tons.

Optional Accessories

• Feeding valve to break lumps and improve material flow (lump crusher)

• Electronic control panel, individually programmable for specific material properties

• Cutting kit (knife cross in AISI 304), improved configuration with 3 blades for flat-bottomed bags

• Paddles including pneumatic/mechanical assist plates and 24V DC control for improved emptying

• Pneumatic control box with solenoid valves for external PLC control

• Cone neoprene can be replaced with white food-grade neoprene

• Safety switch/micro switch for inspection hatch that cuts all power when opened

• Flanges in various types, e.g., 273 mm to 219 mm, square or round, for screw conveyors or other accessories

• Micro-doser

• Vibrator

• Side venting, connectable to a filter

• Slide or rotary gates

• Bottom level sensor (paddle switch)

• Extension legs (100, 150, or 200 mm)

Note: Must be bolted to the floor, 12 holes with a diameter of 16.5 mm.

Suitable Bag Type

• Dimensions (L × W × H): 910 × 1110 × 1600 mm

• 4-loop bag

• Loop length: 350 mm

• Discharge spout: Ø 400 mm

• Bag weight: 1000 kg
