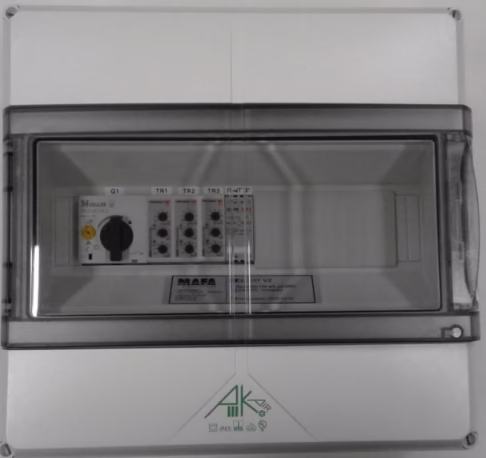

The EL110T is designed to control material transport via a single auger, for example from a silo. It offers five different control configurations depending on the application.
Control Options:
- Standard Function:
- Two capacitive sensors are mounted in the outlet pipe to detect MAX and MIN levels.
- The auger starts when the MIN sensor is inactive and stops when the MAX sensor is triggered.
- A timer relay (TR2) stops the auger if the preset runtime is exceeded (alarm optional).
- Push Button Control:
- Auger starts via push button.
- Stops after preset time or via sensor.
- Timer relay TR2 ensures max runtime protection.
- Manual Switch Control:
- Auger starts/stops via rotary switch.
- Ideal for filling feed wagons.
- Mechanical Limit + Photocell:
- Auger starts based on mechanical limit switch.
- Stops when photocell detects correct level.
- Timer relay TR2 ensures max runtime protection.
- Single Sensor Control:
- Auger starts when material drops below a capacitive sensor.
- Stops when sensor is triggered again.
- Timer relay TR2 ensures max runtime protection.
Specifications:
- Power supply: 3×400 V AC + N or 3×230 V AC
- Number of drives: 1
- Protection class: IP65
- Max current: 16 A
- Max motor power (400 V): 4.0 kW
- Max motor power (230 V): 2.2 kW
- Temperature range: –20 to +60 °C
- Enclosure type: Standard enclosure
- Dimensions: 315 × 300 × 155 mm
- Certifications: VDE, DLG, UL-EU
Recommended Accessories:
- Sensor 213: Capacitive, ATEX-certified, 24 V DC with relay output
- Sensor 221: Capacitive, 24 V DC with adjustable sensitivity and timing
