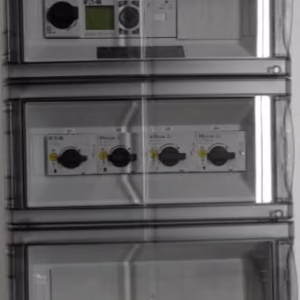

The EL120P is designed to control material transport via augers from, for example, a silo. It can manage either 2 augers in series or 2 separate augers, depending on the configuration.
Control Options:
- Option 1:
- M1: Auger from silo
- M2: Subsequent auger
- Both motors (M1 & M2) start simultaneously when the MIN sensor in the last outlet pipe is inactive.
- Motors stop when the MAX sensor is triggered.
- M1 can also be controlled separately by sensors 1 and 2.
- Safety timer stops both motors if runtime exceeds preset limits (alarm optional).
- Option 2:
- M1 and M2 operate independently
- Each motor is controlled by its own sensor pair (1 & 2 for M1, 3 & 4 for M2)
Specifications:
- Power supply: 3×400 V AC + N or 3×230 V AC
- Max current: 16 A
- Protection class: IP65
- Max motor power (400 V): 4.0 kW per contactor, 7.5 kW total
- Max motor power (230 V): 2.2 kW per contactor, 4.0 kW total
- Temperature range: –20 to +60 °C
- Enclosure type: Standard enclosure
- Dimensions: 315 × 450 × 155 mm
- PLC: Eaton Easy-E4-UC-12RC1
- Memory card: Micro SD
- Certifications: VDE, DLG, UL-EU
Recommended Accessories:
- Sensor 213: Capacitive, ATEX-certified, 24 V DC with relay output
- Sensor 221: Capacitive, 24 V DC with adjustable sensitivity and timing
