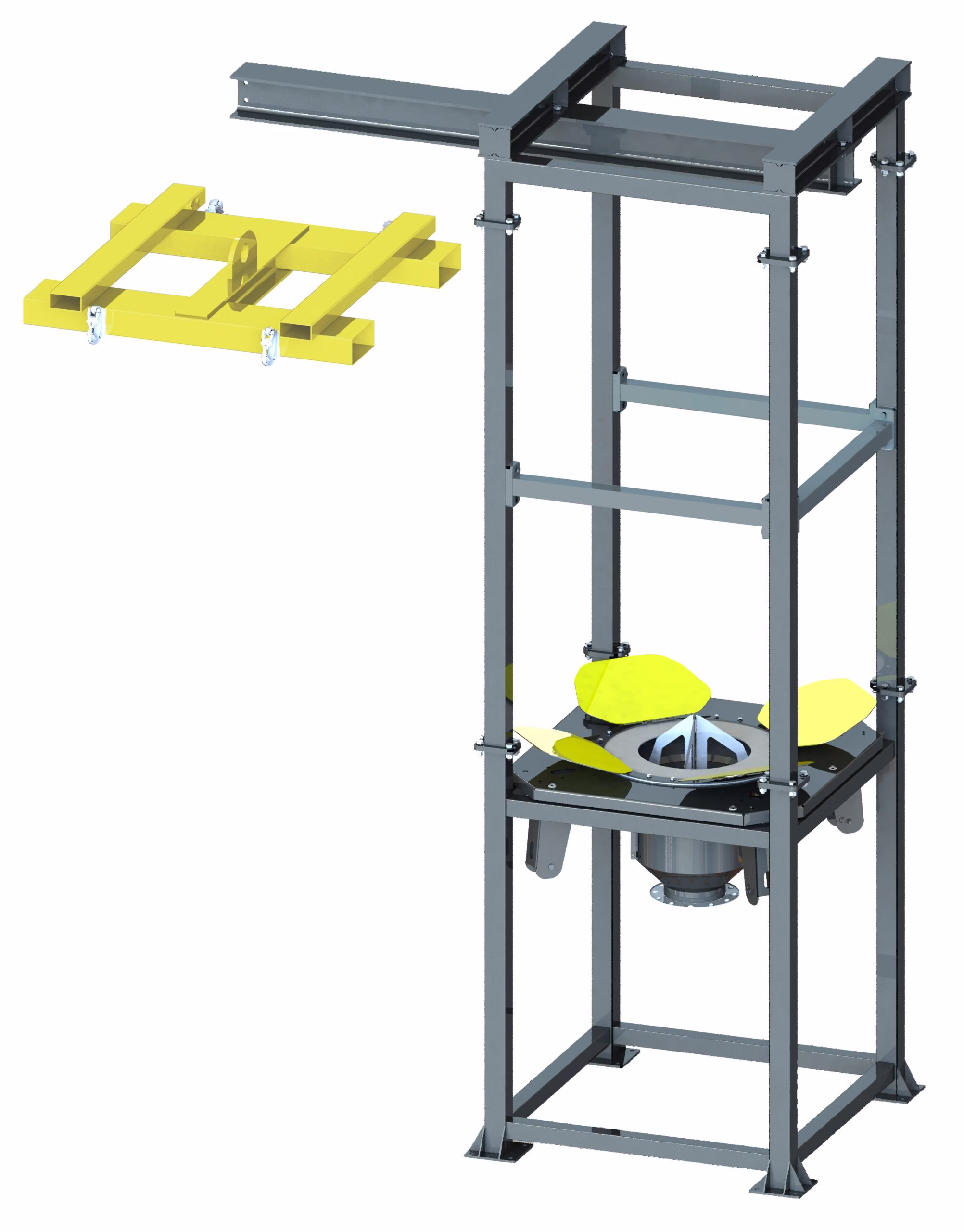

The Bulk Bag Discharger SBB-HFF M is designed for efficient and controlled emptying of big bags.
This version (Model M) is equipped with a frame for crane operation.
The unit is manufactured in carbon steel, painted RAL 7001, with a lifting cross (yoke) in steel painted RAL 1004, and a crane beam and frame in coated carbon steel.
It includes a 0.15 kW motor vibrator to assist material flow.
The cone is fitted with a black neoprene sealing sleeve (standard version), which reduces dust formation during discharge.
The discharger has a flanged cylindrical outlet XKFL Ø273 mm and can be equipped with an inspection hatch including a safety switch (KFMSBBHFF) as an optional accessory.
Through the inspection hatch, the bag can be opened safely (for bags with conical, non-flat bottoms).
The lifting yoke features a central lifting eye for crane operation and can also be lifted with forks. It includes four hooks for secure attachment of the bulk bag.
Available Versions
-
Standard version
-
Product-contact parts in stainless steel (AISI 304)
-
Entirely in stainless steel (AISI 304)
Other Models
-
SBB-HFF C – without frame, for hanging big bags
-
SBB-HFF S – for forklift handling
All models and versions have a maximum load capacity of 2 tons.
Optional Accessories
-
Feeding valve / lump breaker – improves material flow and breaks up compacted material
-
Electronic control panel, individually programmable according to material characteristics
-
Cutting device kit (knife cross in AISI 304) – improved 3-blade configuration for flat-bottom bags
-
Paddles (as shown in images) including pneumatic/mechanical plates and control system (24V DC); with pneumatic control box and solenoid valves for external PLC control, painted aluminum (RAL 1004); retrofittable
-
White food-grade neoprene (optional instead of standard black)
-
Safety/microswitch for inspection hatch – cuts all power when hatch is opened
-
Outlet flanges in various versions (Ø273 mm → Ø219 mm, square or round) for connection to screw feeders or other equipment
-
Microdoser
-
Vibrator
-
Deaeration outlet (side-mounted) for connection to filter
-
Dampers, e.g. slide gate or butterfly valve
-
Level sensor (paddle switch)
-
Extension legs (100, 150, or 200 mm)
Important Information
-
Crane not included – suitable for I-beam 202 (to be purchased separately)
-
Must be bolted to the floor – 12 holes Ø16.5 mm
